Research on Design of HPR 1000 Steam Generator Upper Support Based on High Seismic Performance
-
摘要: 为提高华龙一号核电机组ZH-65型蒸汽发生器抗震性能，提出了一种新型的蒸汽发生器支承方案，即对蒸汽发生器上部支承釆用连接拉杆与液压阻尼器结合的结构形式，并针对总体设计方案和连接拉杆的热膨胀相容性进行了设计研究。相比原有二代加核电机组蒸汽发生器上部支承，本文所设计研究的上部支承在设备重量、焊缝数量、安装调试难度等方面，均有大幅优化；可有效减少支承载荷，最大减少幅度约为24%；可降低蒸汽发生器接管焊缝载荷，最大降低幅度约为28%。Abstract: In order to improve the seismic performance of ZH-65 steam generator of HPR 1000 nuclear power plant, a new support scheme of steam generator is put forward, that is, the structure of connecting rod and hydraulic damper is used for the upper support of steam generator, and the overall design scheme and the thermal expansion compatibility of connecting rod are designed and studied. Compared with the original steam generator upper support of the second generation plus nuclear power unit, the upper support designed and studied in this paper is greatly optimized in terms of equipment weight, number of welds and difficulty of installation and commissioning; It can effectively reduce the supporting load, and the maximum reduction range is about 24%; The weld load of steam generator nozzle can be reduced, and the maximum reduction range is about 28%.
-
Key words:
- Steam generator /
- Support /
- Connecting rod /
- Thermal expansion compatibility
-

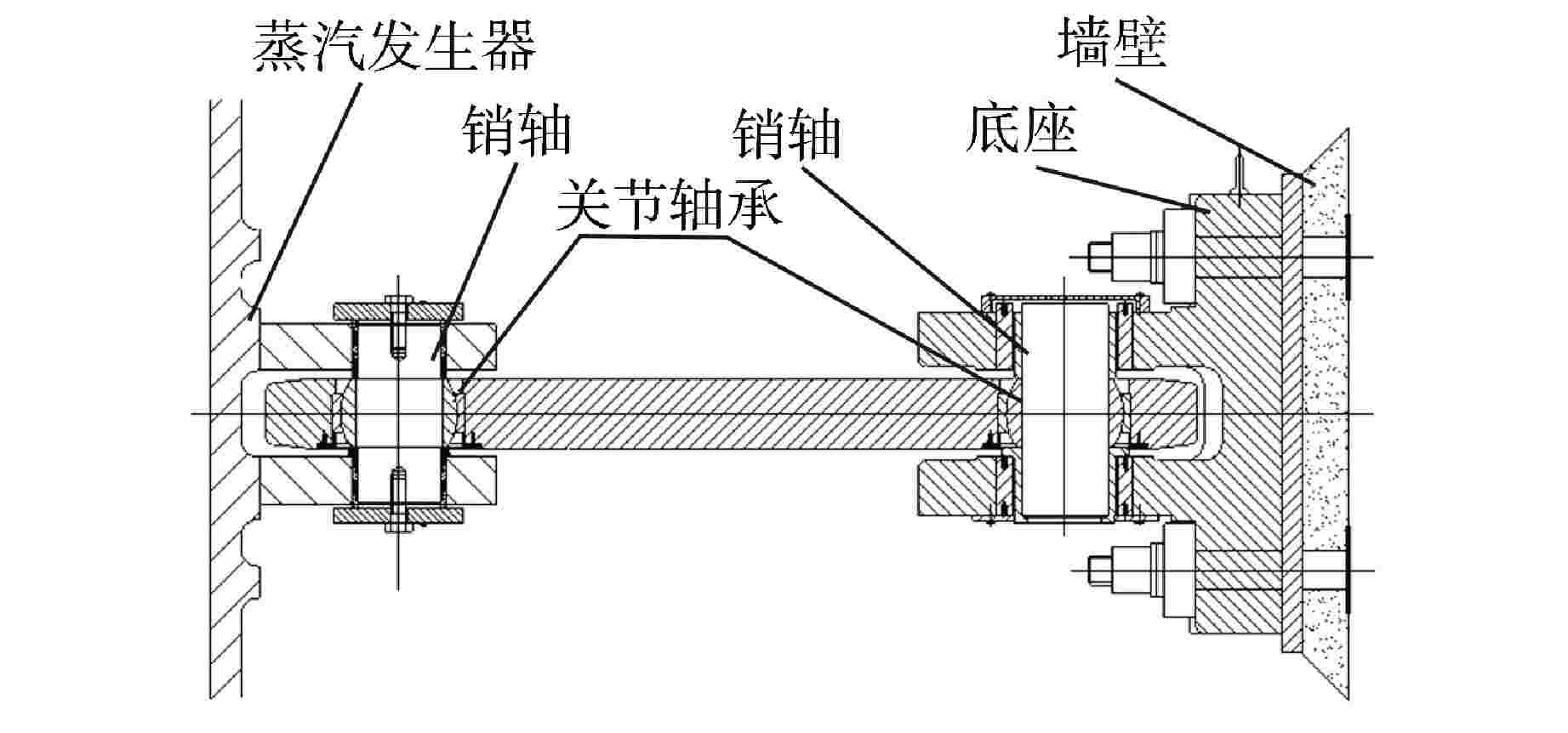

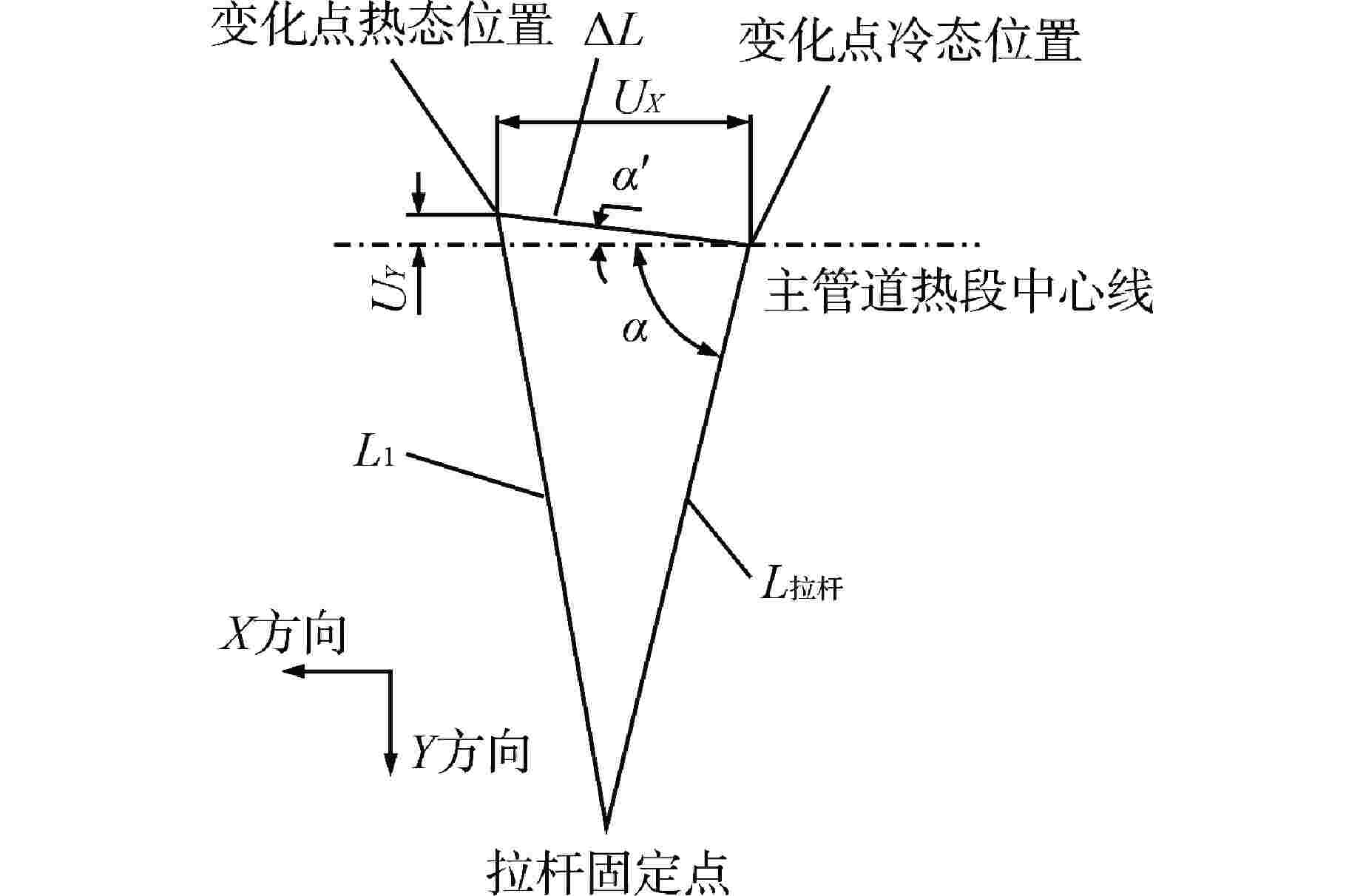

图 5 连接拉杆在水平面内位移示意图
Figure 5. Diagram of Displacement of Connecting Rod in Horizontal Plane

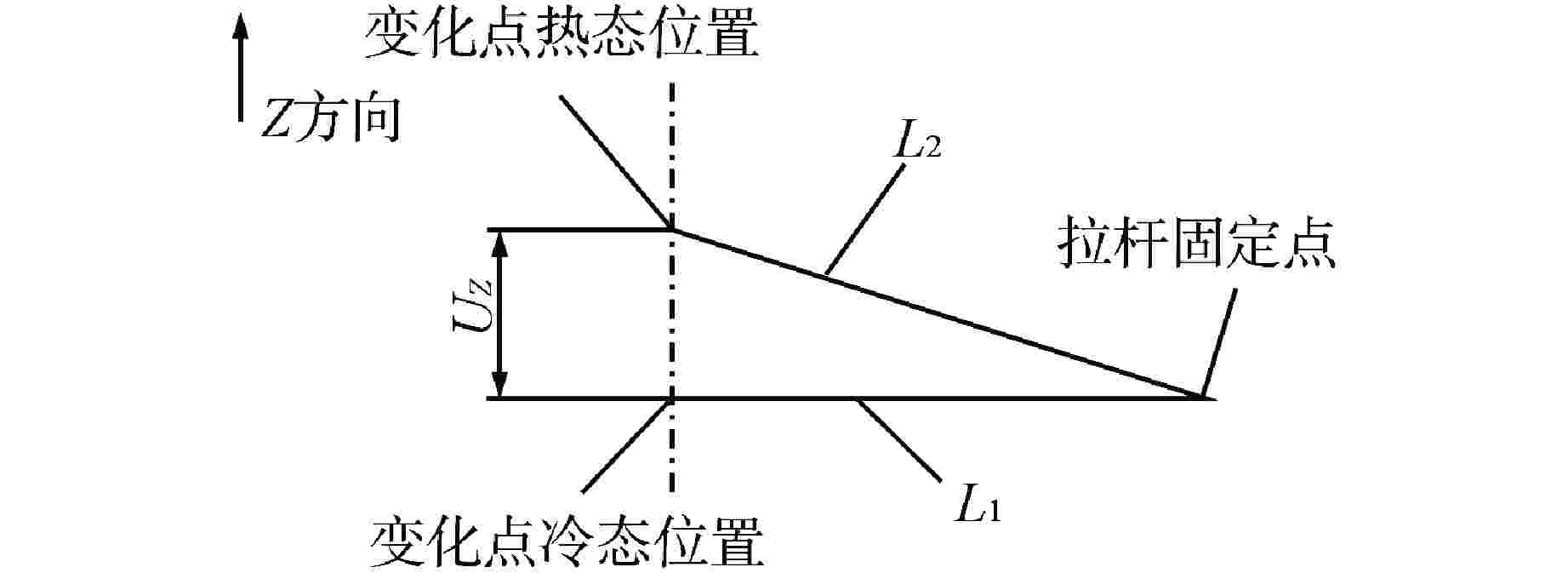

图 6 连接拉杆在竖直平面内位移示意图
Figure 6. Diagram of Displacement of Connecting Rod in Vertical Plane

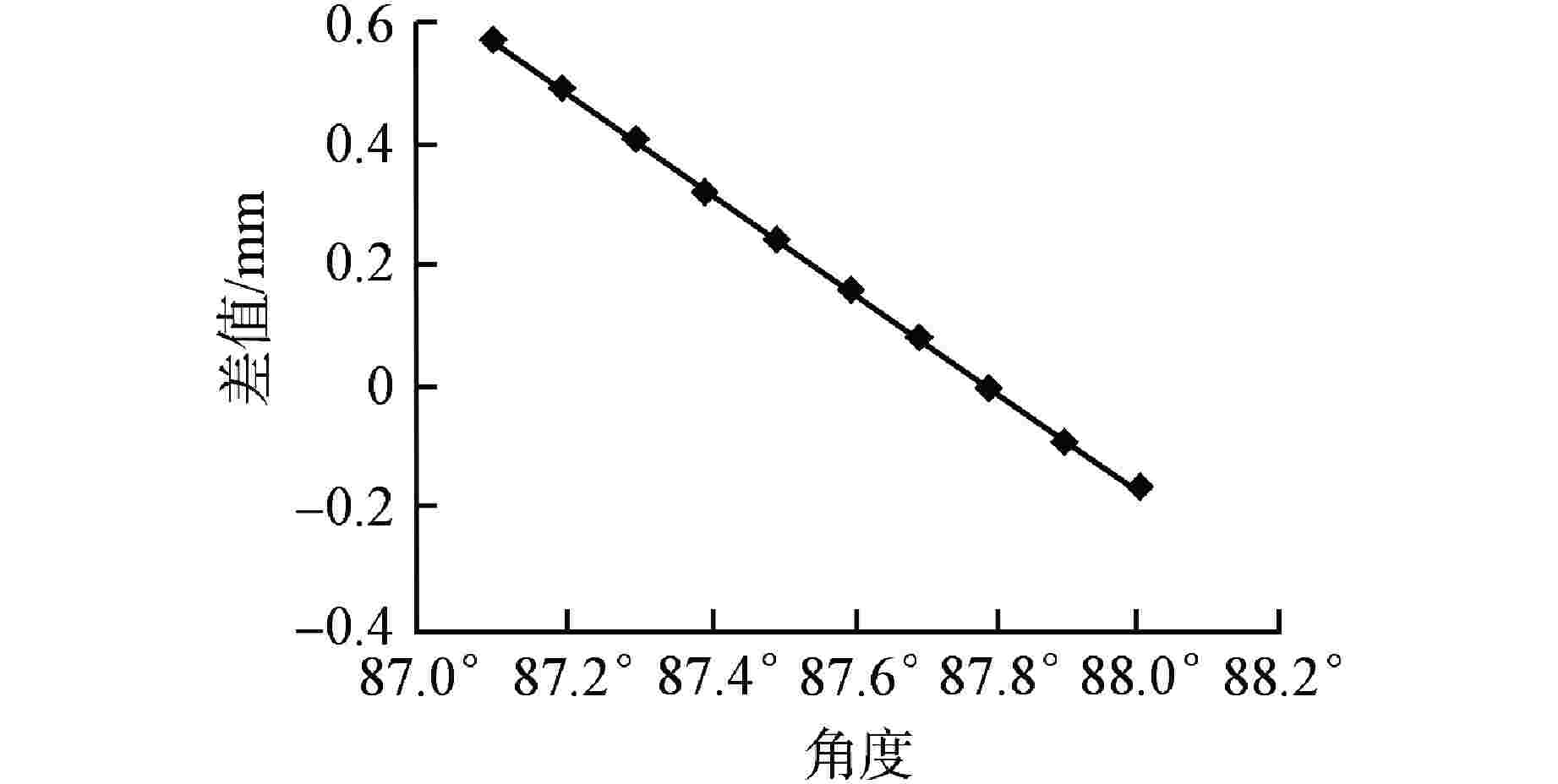

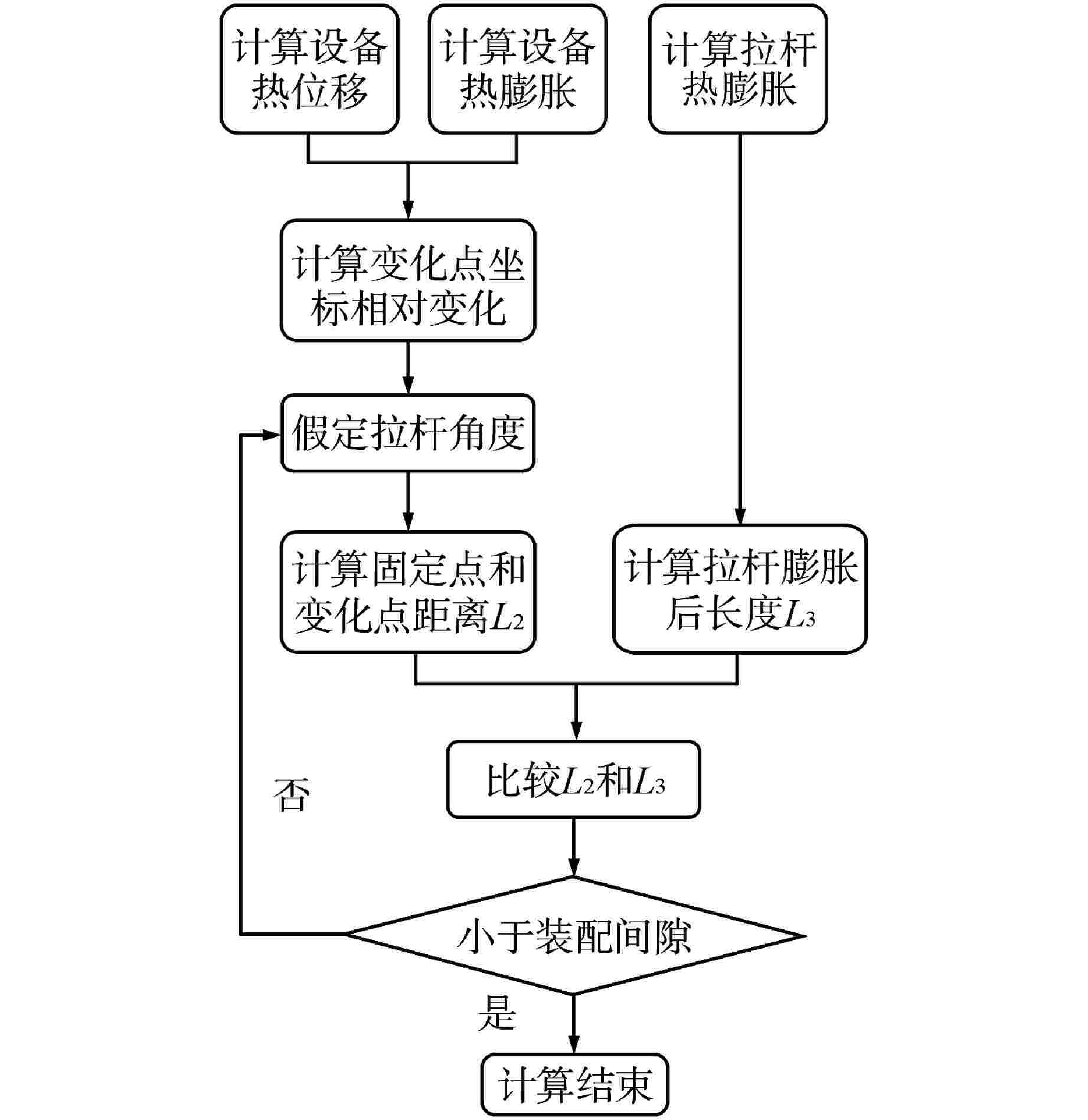

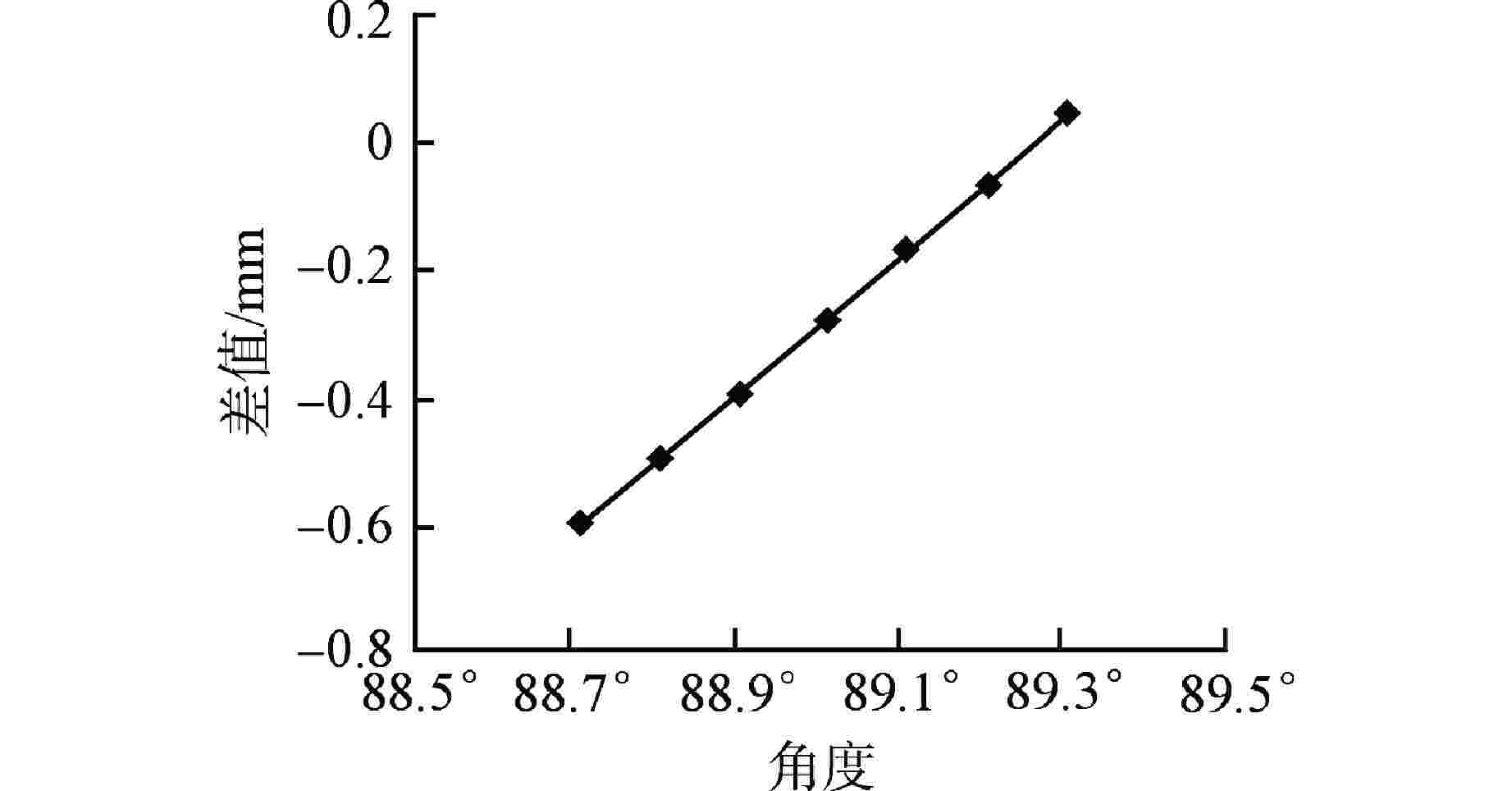

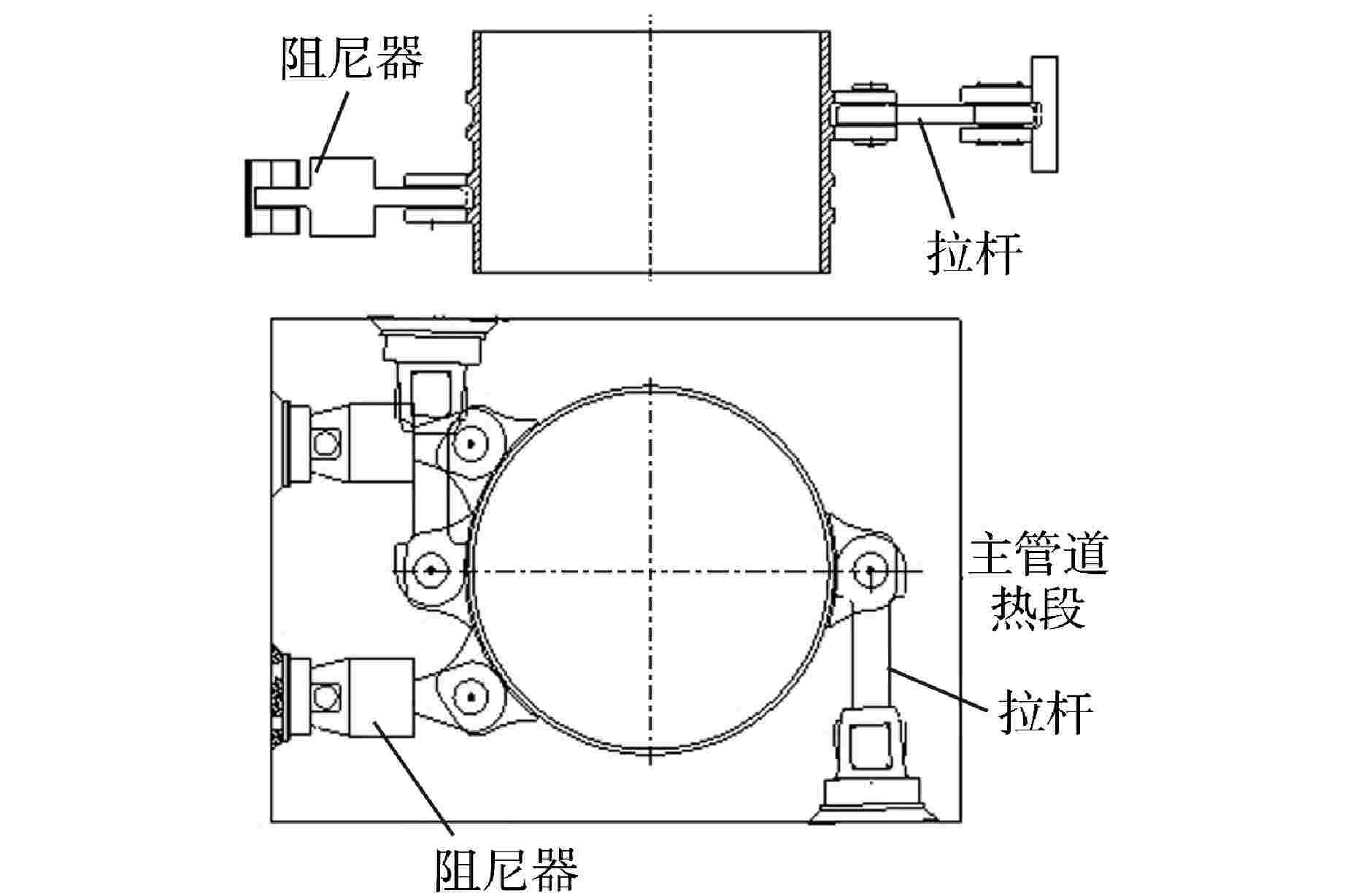

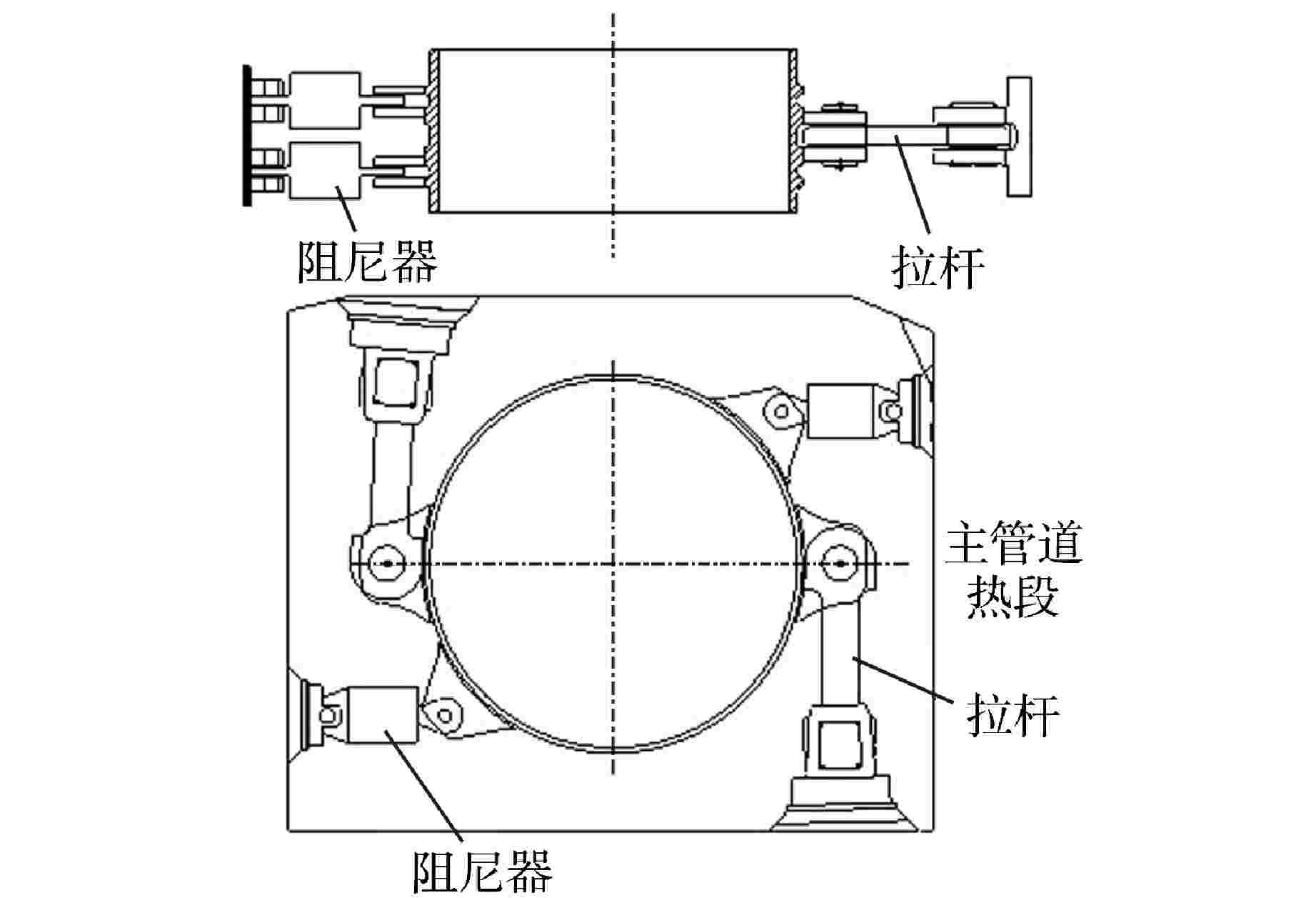

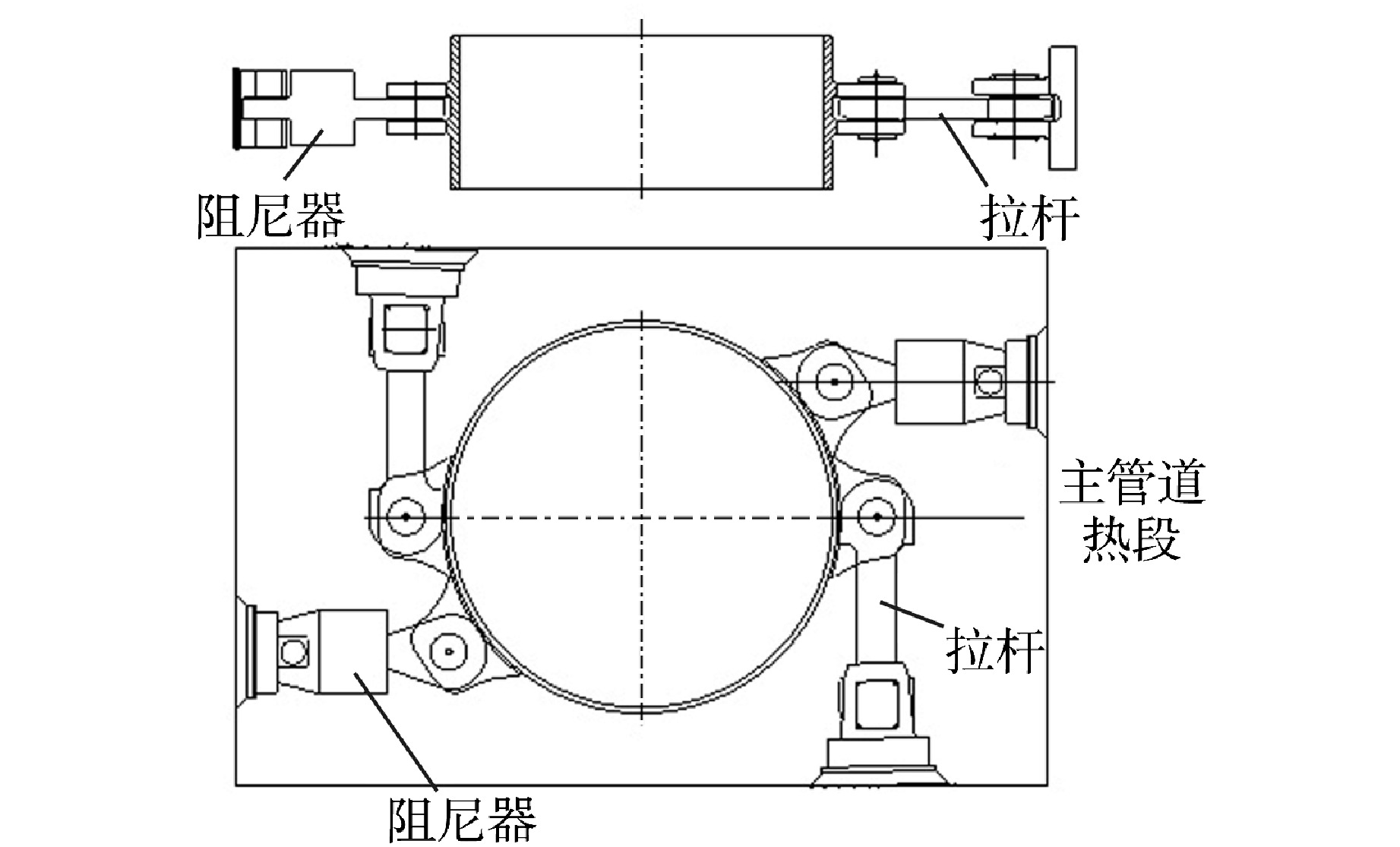

表 1 总体方案对比
Table 1. Overall Scheme Comparison
方案 方案A 方案B 方案C 优点 阻尼器数量少；中心对称布置，受力均匀 可充分利用蒸汽发生器隔间尺寸，土建结构修改小；阻尼器数量少 土建结构修改少；中心对称布置，受力均匀；单台阻尼器载荷要求低 缺点 隔间尺寸要求大，需要大幅修改土建结构；单台阻尼器载荷要求高 单台阻尼器载荷要求高；非对称布置，受力不均匀 阻尼器数量多，需要2层布置；设备本体增加连接支板
下载: 导出CSV
-
[1] 《蒸汽发生器》编写组. 蒸汽发生器[M]. 北京: 中国原子能出版社, 1982: 1-2. [2] 冀丽,刘勇,岳为民,等. 秦山核电二期工程反应堆冷却剂系统主设备支承的设计、制造及安装调试[J]. 核动力工程,2003, 24(S1): 190-192. [3] 汤臣杭. 压水堆核电厂蒸汽发生器支承设计及特点[J]. 科技视界,2015(15): 264-265. doi: 10.3969/j.issn.2095-2457.2015.15.208 [4] 张鹏,高宝宁. AP1000核电机组蒸汽发生器的吊装[J]. 电站辅机,2012, 33(3): 35-38. doi: 10.3969/j.issn.1672-0210.2012.03.009 [5] 蔡缝春,梁艳仙,叶献辉. 蒸汽发生器非线性支承系统的抗震能力分析[J]. 原子能科学与技术,2015, 49(7): 1261-1265. [6] 沈平川,齐欢欢,黄旋. 主蒸汽管对反应堆冷却剂系统静力和动力分析的影响[J]. 机械工程师,2016, 11: 214-216. doi: 10.3969/j.issn.1002-2333.2016.03.103 [7] 汤臣杭, 何劲松, 张富源. 一种用于核电站蒸汽发生器上部水平支承的拉杆装置: 中国, CN201220702308.7 [P]. 2013.8.14. -
