LOCUST软件再淹没模型验证与不确定性研究

许荣栓; 夏航; 徐财红; 贺东钰; 王婷; 厉井钢

doi:10.13832/j.jnpe.2024.04.0111

LOCUST软件再淹没模型验证与不确定性研究

doi: 10.13832/j.jnpe.2024.04.0111

中广核研究院有限公司，广东深圳，518000

详细信息

通讯作者:
许荣栓（1992—），男，工程师，博士研究生，现主要从事反应堆热工水力软件研究，E-mail: xupoil@qq.com

中图分类号: TL364
计量
- 文章访问数: 566
- HTML全文浏览量: 12
- PDF下载量: 24
- 被引次数: 0
出版历程
- 收稿日期: 2023-08-28
- 修回日期: 2023-10-10
- 刊出日期: 2024-08-12

Verification and Uncertainty Evaluation of LOCUST Reflood Model

China Nuclear Power Technology Research Institute Co., Ltd., Shenzhen, Guangdong, 518000, China

摘要

摘要: 再淹没阶段是压水堆发生大破口失水事故（LBLOCA）后的重要阶段，为了评估系统软件LOCUST对该阶段的模拟能力，开展了LOCUST软件再淹没模型验证与不确定性研究工作。基于RBHT实验台架实验结果对LOCUST软件再淹没模型进行了验证；同时采用响应曲面法对再淹没模型开展了不确定性分析，将壁面-液膜沸腾换热系数、壁面-汽膜沸腾换热系数和界面摩擦系数作为输入参数，采用响应曲面法获得了RBHT实验台架实验段3个高度下加热棒表面最高温度的响应函数。验证计算结果与实验结果总体趋势符合良好，最高温度偏差在40 K以内。基于响应曲面法计算结果可知，95%的概率和95%的置信度下加热棒表面3个高度的最高温度最大偏差在20 K左右；当3个输入参数无量纲因子分别为1.951、1.233、0.1条件下，3个高度的最高温度计算值与实验值基本一致。
- 再淹没 /
- LOCUST /
- RBHT /
- 不确定性
Abstract: The reflood stage is an important stage after a large break loss of coolant accident (LBLOCA) in pressurized water reactor. In order to evaluate the simulation ability of the system code LOCUST, the verification and uncertainty research of LOCUST reflood model are carried out. Based on the experimental results of RBHT test bench, the LOCUST reflood model is verified. At the same time, the uncertainty of the reflood model is analyzed by response surface method, and the response function of the maximum temperature of the heating rod surface at three heights of RBHT test section is obtained by response surface method with the wall-liquid film boiling heat transfer coefficient, wall-vapor film boiling heat transfer coefficient and interface friction coefficient as input parameters. The calculated results are in good agreement with the experimental results, and the maximum temperature deviation is within 40 K. Based on the calculation results of response surface method, the maximum deviation of the maximum temperature of the heating rod surface at three heights is about 20 K with 95% probability and 95% confidence. Meanwhile, the highest temperature values calculated for the three heights are basically consistent with the experimental values when the dimensionless factors of the three input parameters are 1.951, 1.233, and 0.1, respectively.
- Reflood /
- LOCUST /
- RBHT /
- Uncertainty

HTML全文

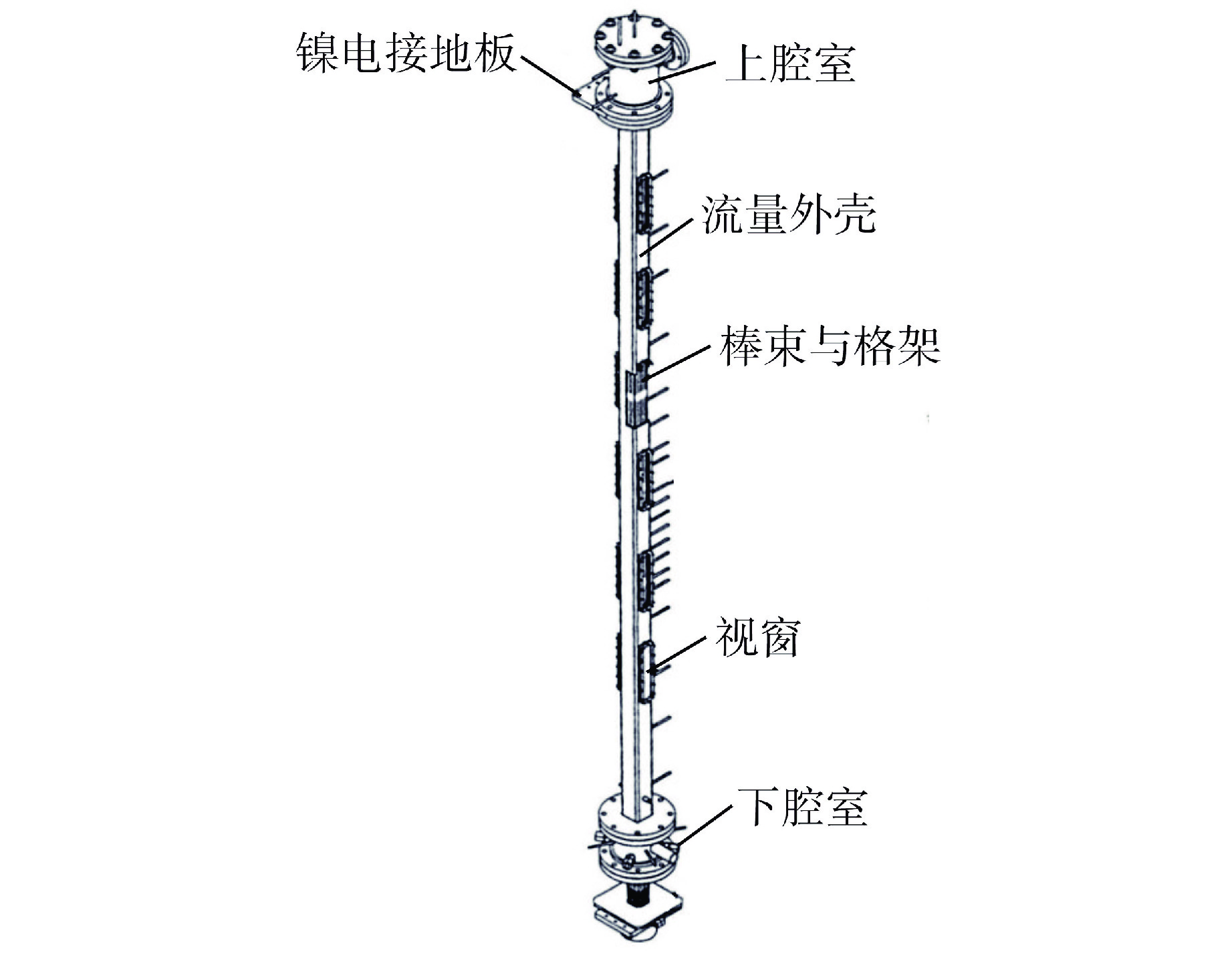

图 1 RBHT实验台架实验段^[10]

Figure 1. Test Section of RBHT Facility

下载: 全尺寸图片幻灯片

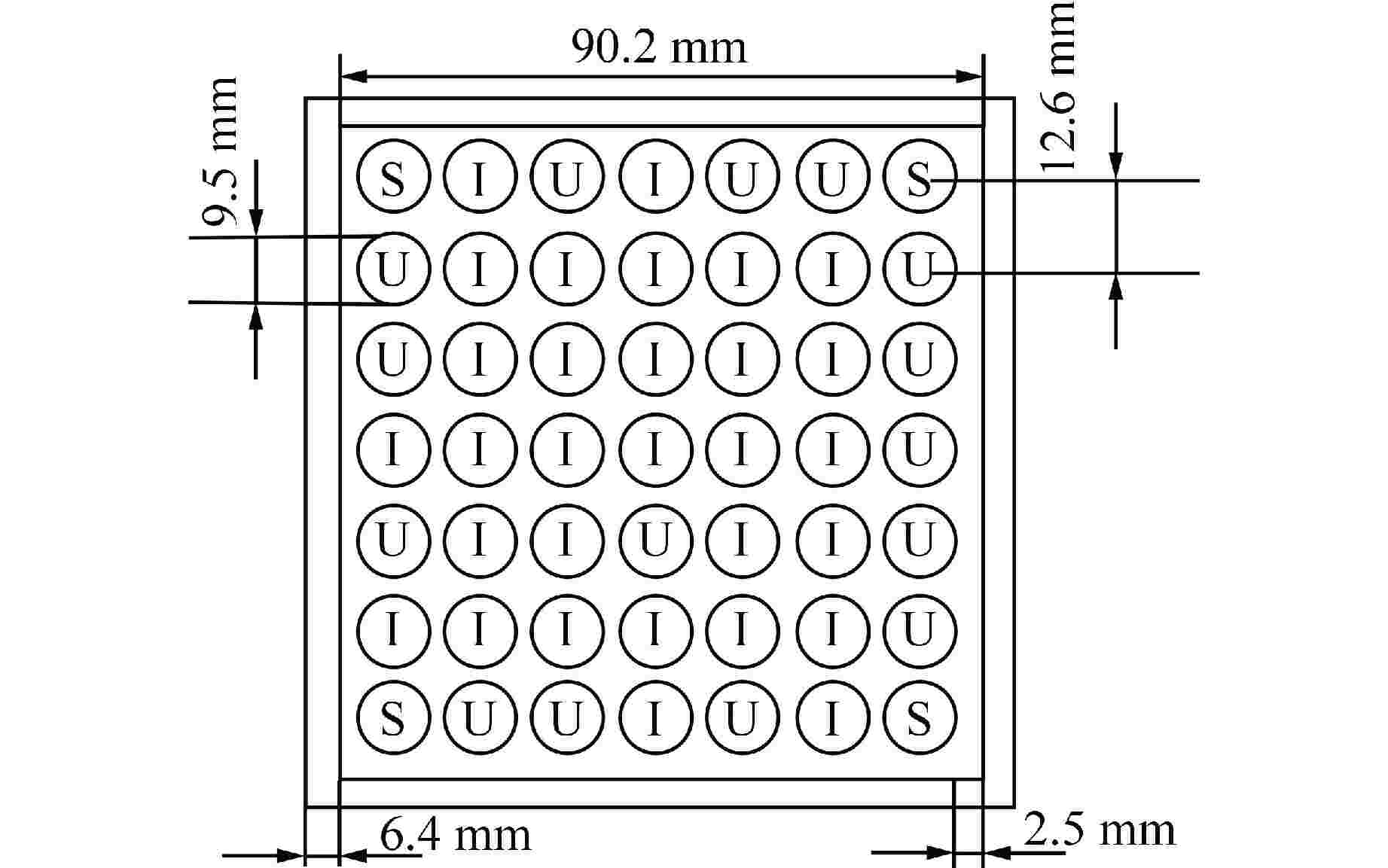

图 2 RBHT加热棒束截面视图^[10]

Figure 2. Cross Section View of RBHT Heating Rod Bundle

下载: 全尺寸图片幻灯片

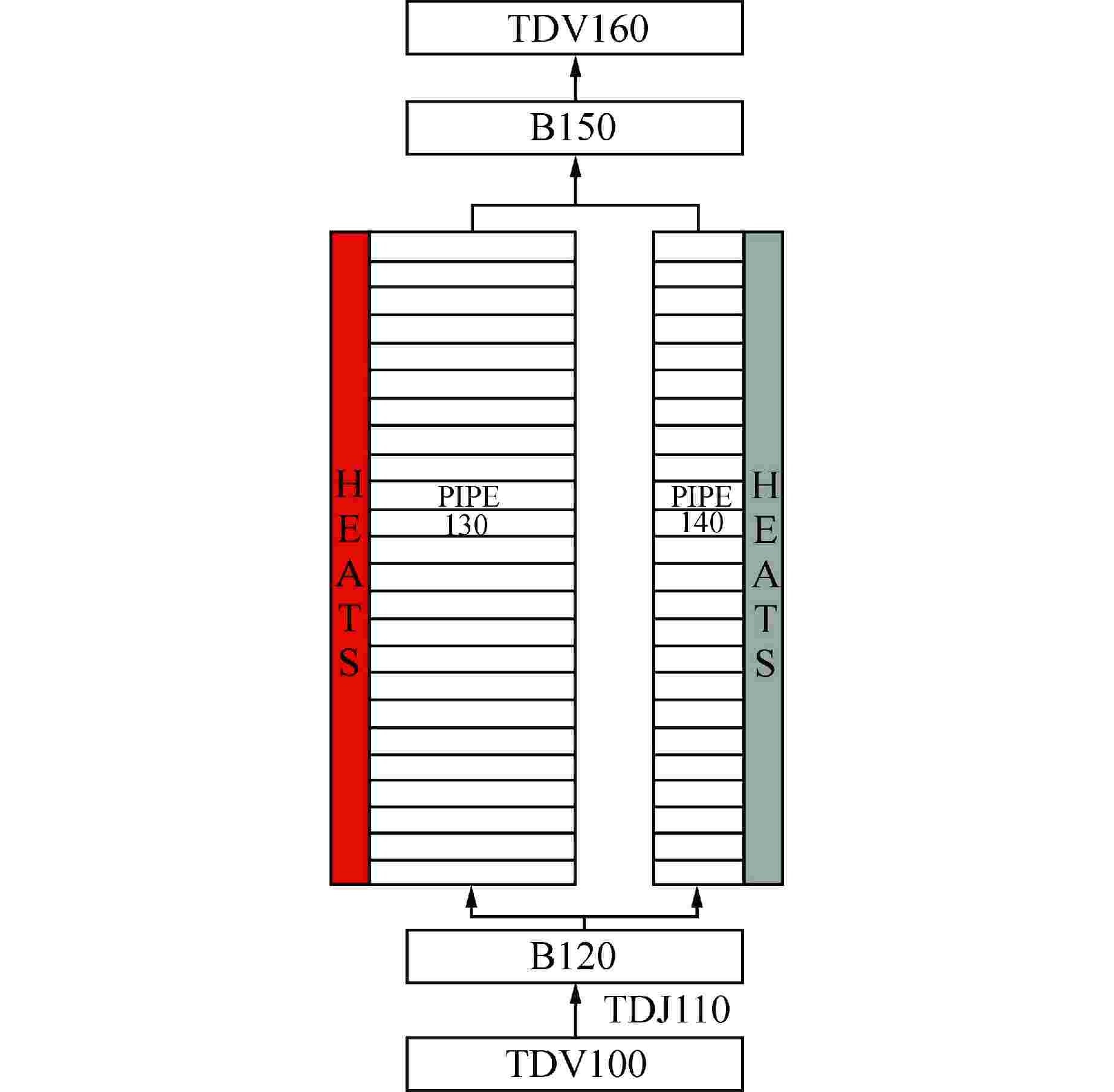

图 3 RBHT节点图

TDJ—时间相关接管

Figure 3. Nodalization of RBHT

下载: 全尺寸图片幻灯片

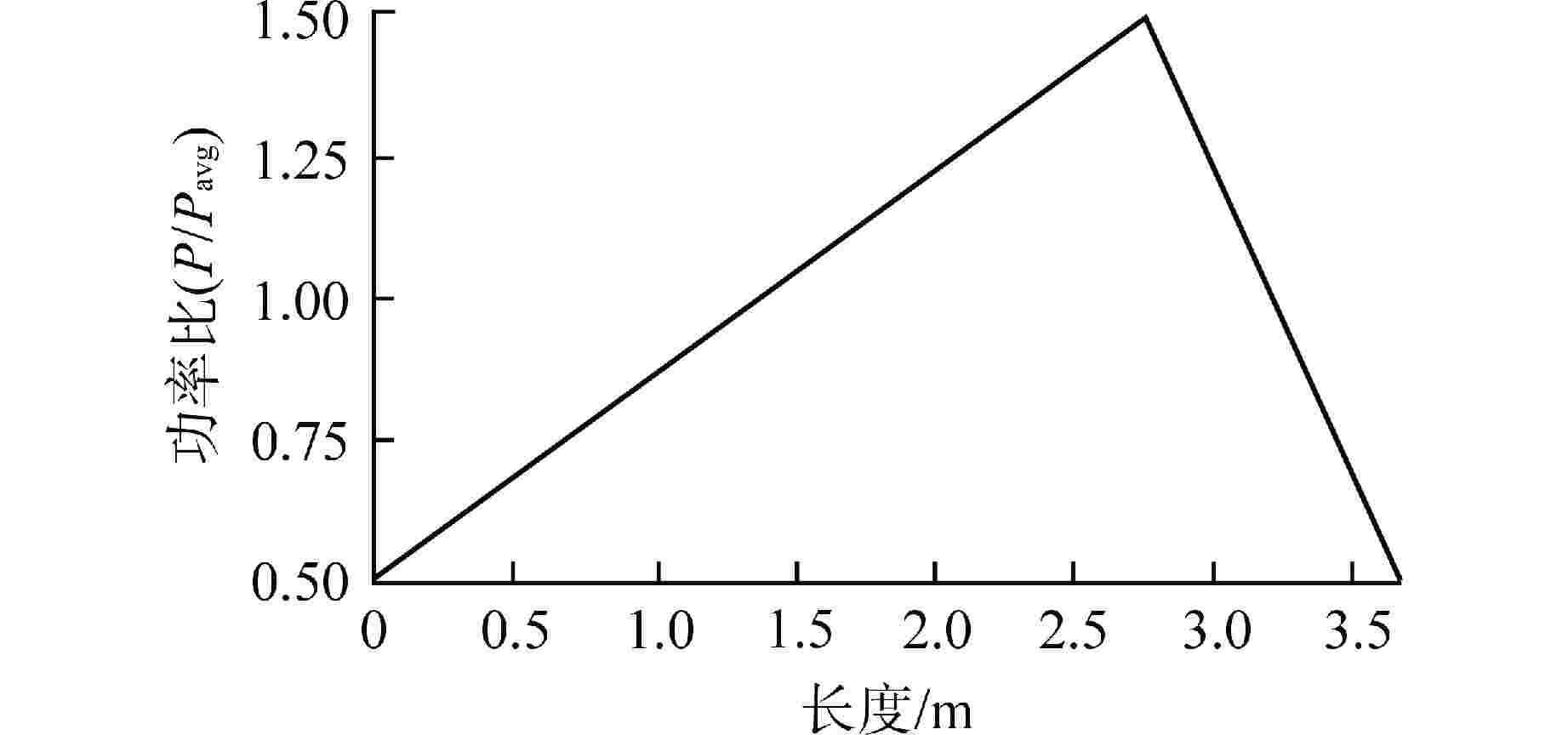

图 4 加热棒轴向功率分布^[10]

P—当地功率；P_avg—平均功率

Figure 4. Axial Power Distribution of Heating Rod

下载: 全尺寸图片幻灯片

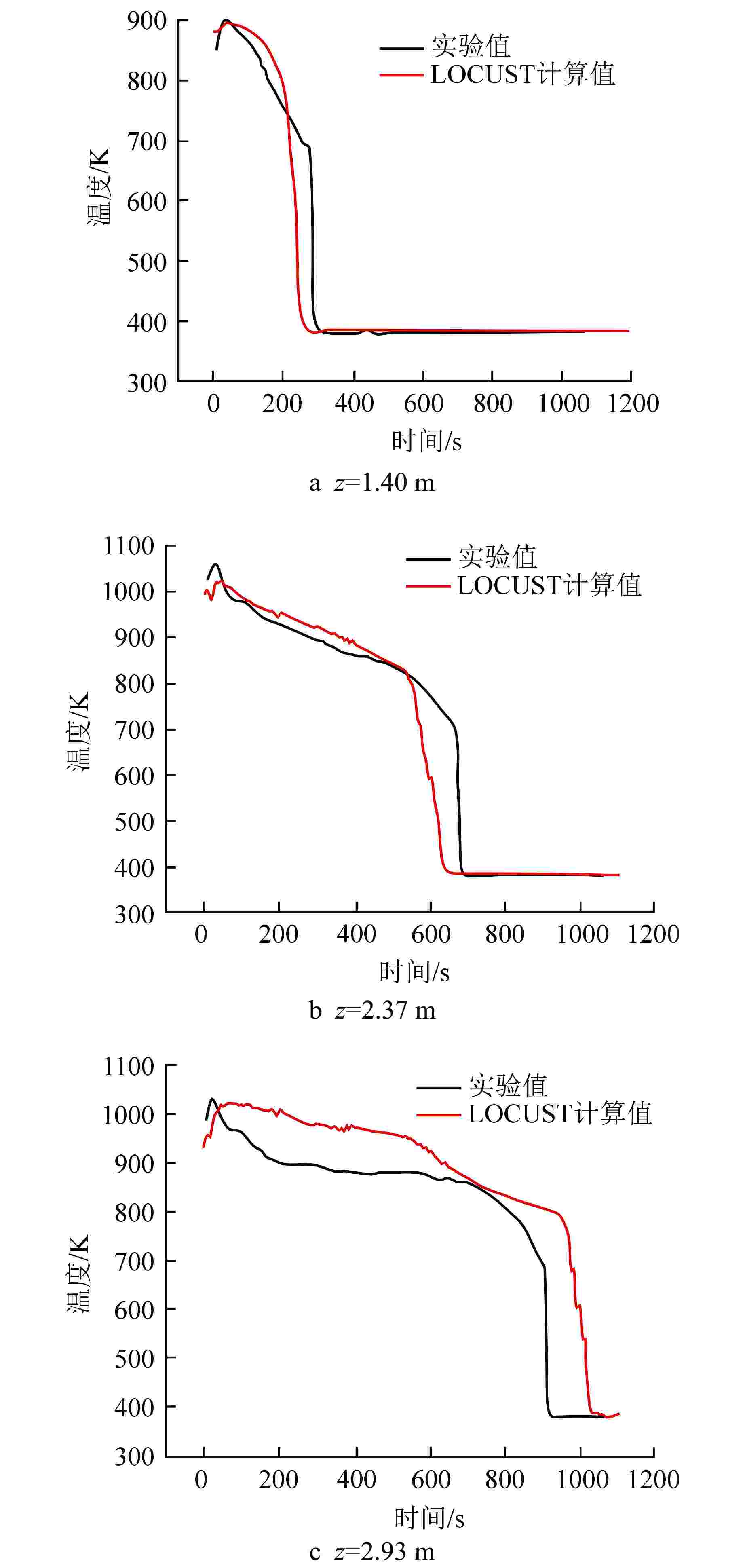

图 5 不同轴向高度处加热棒表面温度变化

Figure 5. Surface Temperature Change of Heating Rod at Different Axial Heights

下载: 全尺寸图片幻灯片

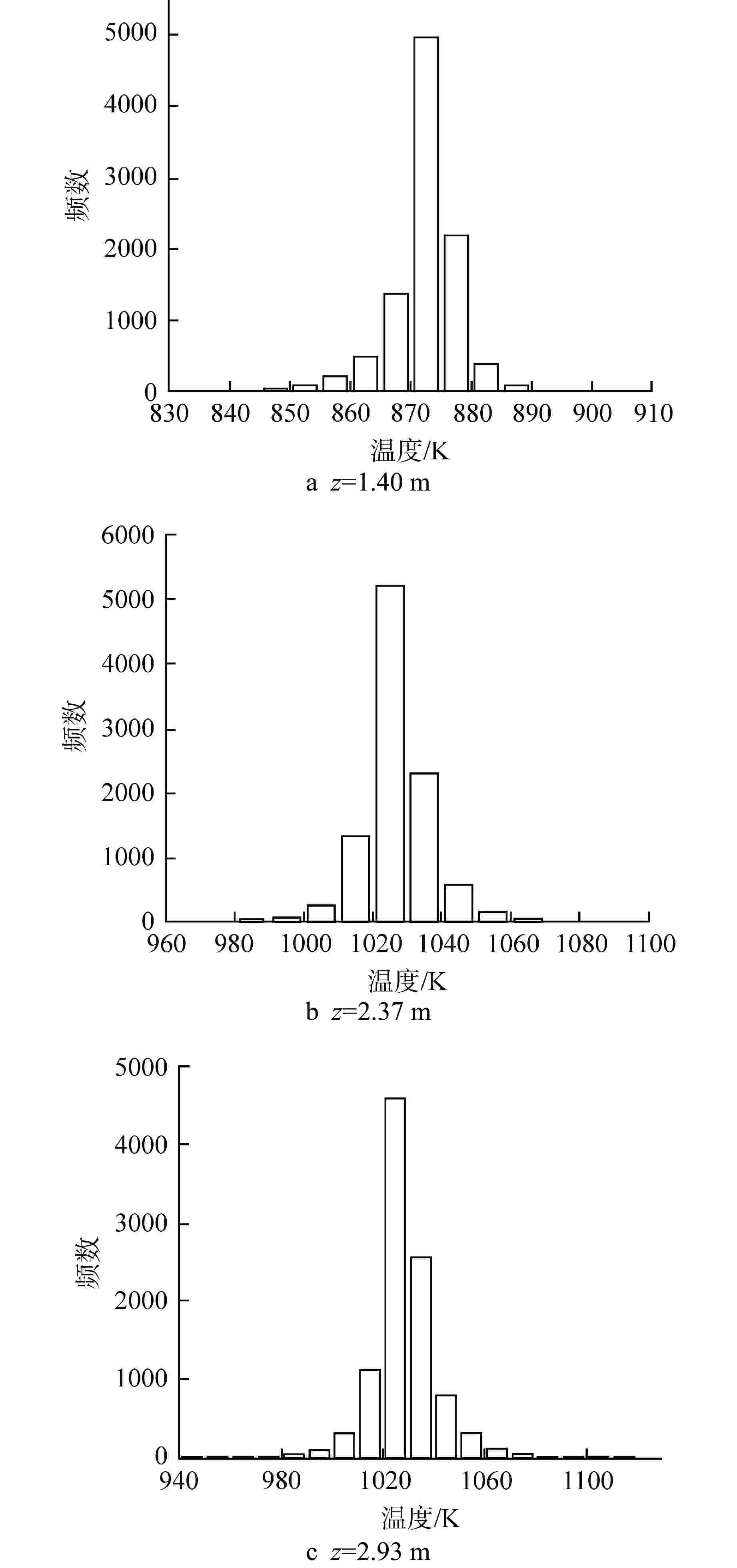

图 6 不同轴向高度处加热棒表面温度频数直方图

Figure 6. Histogram of Heating Rod Surface Temperature Distribution at Different Axial Heights

下载: 全尺寸图片幻灯片

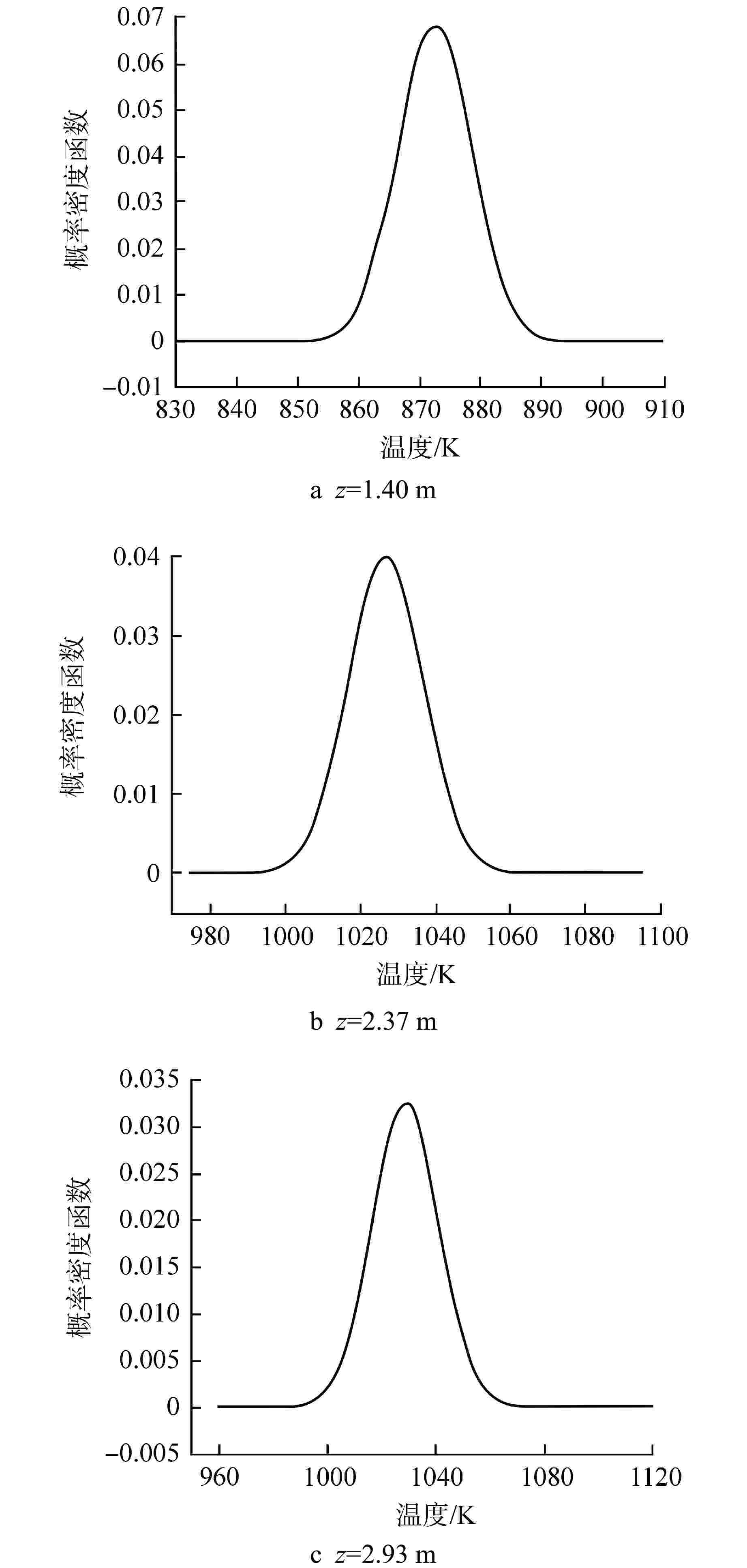

图 7 不同轴向高度处加热棒表面温度概率密度函数

Figure 7. Probability Density Function of Surface Temperature of Heating Rod at Different Axial Heights

下载: 全尺寸图片幻灯片

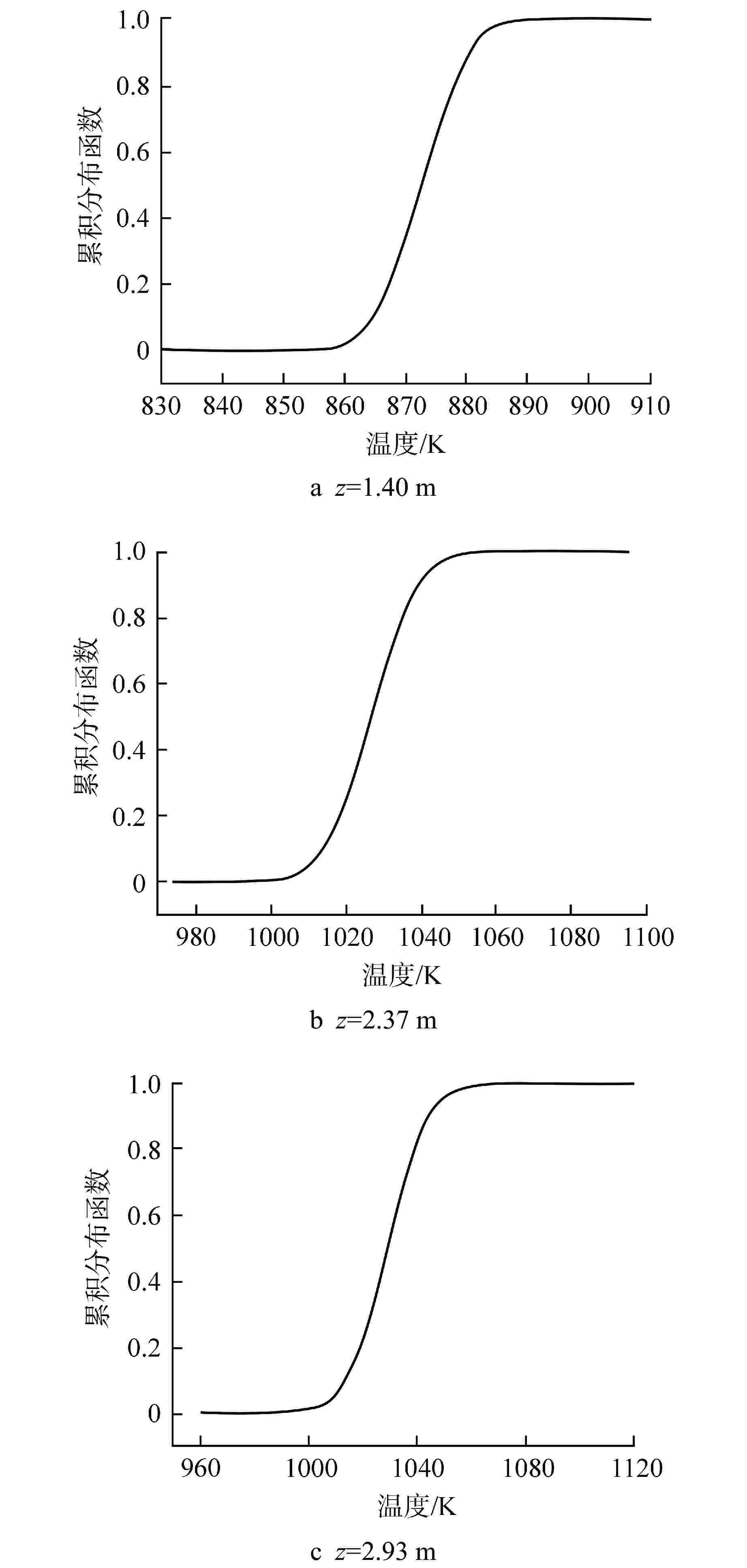

图 8 不同轴向高度处加热棒表面温度累积分布函数

Figure 8. Cumulative Distribution Function of Surface Temperature of Heating Rod at Different Axial Heights

下载: 全尺寸图片幻灯片

表 1 注入流量与功率变化

Table 1. Variation of Injection Flow and Power

时间/s 注入流量/(kg·s⁻¹) 功率/W

0 0 0

0.5 0.06 71919

1 0.125 143838

1062 0.125 143838

1062.5 0.06 71919

1063 0 0

下载: 导出CSV

表 2 不同轴向高度处加热棒表面最高温度实验结果与LOCUST计算结果对比

Table 2. Comparison of Maximum Heating Rod Surface Temperature at Different Axial Heights between Experimental Data and LOCUST Calculation Results

z/m 加热棒表面最高温度/K 偏差/K

计算值实验值

1.40 874.48 901.70 27.22

2.37 1025.93 1061.30 35.37

2.93 1024.25 1032.40 8.15

下载: 导出CSV

表 3 不同轴向高度处骤冷时间实验结果与LOCUST结果对比　　　　　

Table 3. Comparison of Quench Time at Different Axial Heights between Experimental Data and LOCUST Results

z/m 骤冷时间/s 偏差/s

计算值实验值

1.40 280 311.5 31.5

2.37 644 695.2 41.2

2.93 1010 925.8 84.2

下载: 导出CSV

表 4 不同轴向高度处加热棒表面最高温度实验结果与RSM结果对比

Table 4. Comparison of Maximum Heating Rod Surface Temperature at Different Axial Heights between Experimental Data and RSM Results

z/m 加热棒表面最高温度/K 温度偏差/K

RSM LOCUST

1.40 874.48 874.48 0

2.37 1027.03 1025.93 1.1

2.93 1028.90 1024.25 4.65

下载: 导出CSV
