Dual-sided Trench Shaped Neutron Detector Using 6LiF/α-Al2O3:C Based on Optically Stimulated Luminescence
-
摘要: 中子个人剂量监测对核电厂、核动力装置、研究堆和高能加速器等核设施工作人员具有重要意义。光释光技术具有读出速度快和多次重复读取等优点，是中子个人剂量监测的重要发展方向。本文设计了一种双面沟槽型6LiF/α-Al2O3:C光释光中子探测器（DS-TSOSLND），采用蒙特卡罗程序Geant4计算分析了不同沟槽宽度、深度和沟槽比对探测器性能的影响规律，探索其中子探测机理。基于Geant4模拟计算结果，结合目前α-Al2O3:C晶体微结构加工工艺条件，成功制备了DS-TSOSLND。137Cs源和重水慢化252Cf中子源测试结果表明，新研制的DS-TSOSLND中子探测阈为10.3 μSv，0.05~20 mSv内其中子剂量响应呈线性关系，在中子个人剂量监测领域具有广阔的应用前景。Abstract: Personal neutron dosimetry is of great significance to the staff of nuclear facilities such as nuclear power plants, nuclear power units, research reactors and high-energy accelerators. Optically stimulated luminescence (OSL) technique has the advantages of fast reading speed and repeated reading many times, and is an important development direction of neutron personal dose monitoring. In this paper, a dual-sided trench shaped optically stimulated luminescence neutron detector (DS-TSOSLND) using 6LiF/α-Al2O3:C is designed, and the Monte Carlo code Geant4 is used to calculate and analyze the influences of different trench width, depth and trench ratio on the detector performance, so as to explore its neutron detection mechanism. Based on the simulation results of Geant4, DS-TSOSLND was successfully developed by combining the current processing conditions of α-Al2O3:C crystal microstructure. The test results of 137Cs source and heavy water moderated 252Cf neutron source show that the neutron detection threshold of the newly developed DS-TSOSLND is 10.3 μSv, and the neutron dose response is linear in the range of 0.05~20 mSv, which has broad application prospects in the field of personal neutron dosimetry.
-

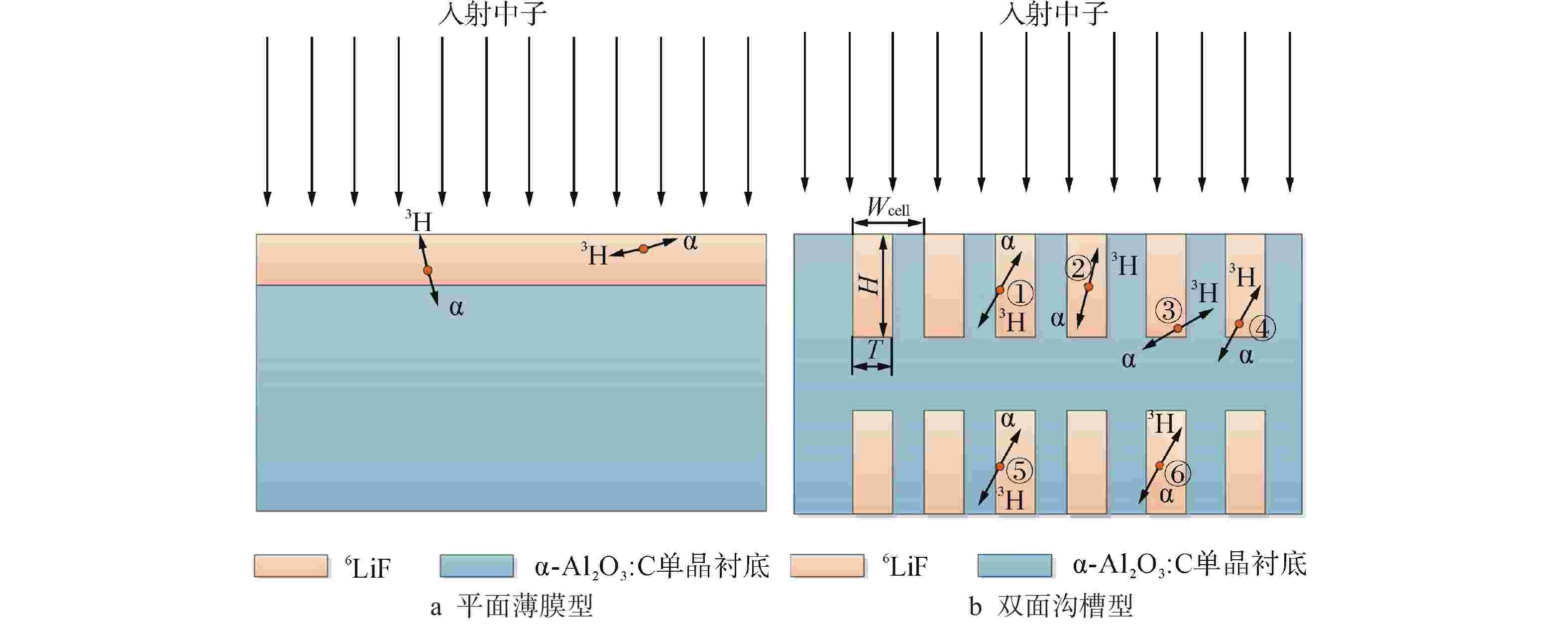

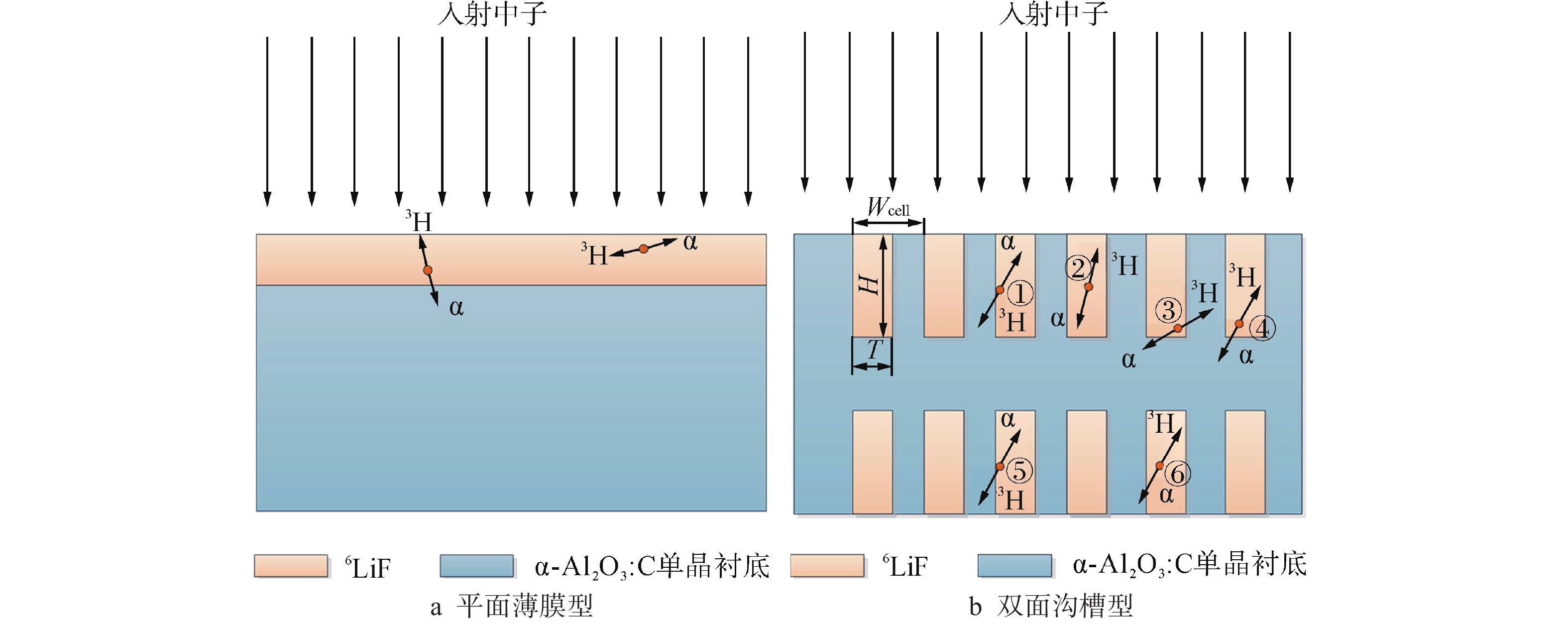

图 1 基于6LiF/α-Al2O3:C的光释光中子探测器结构示意图
Wcell—沟槽单元宽度；T—沟槽宽度；H—沟槽深度；①、④、⑤、⑥—α或3H到达α-Al2O3:C衬底；②—α和3H不能到达α-Al2O3:C衬底；③—α和3H同时到达α-Al2O3:C衬底
Figure 1. Structural Schematic Diagram of OSL Neutron Detector Using 6LiF/α-Al2O3:C

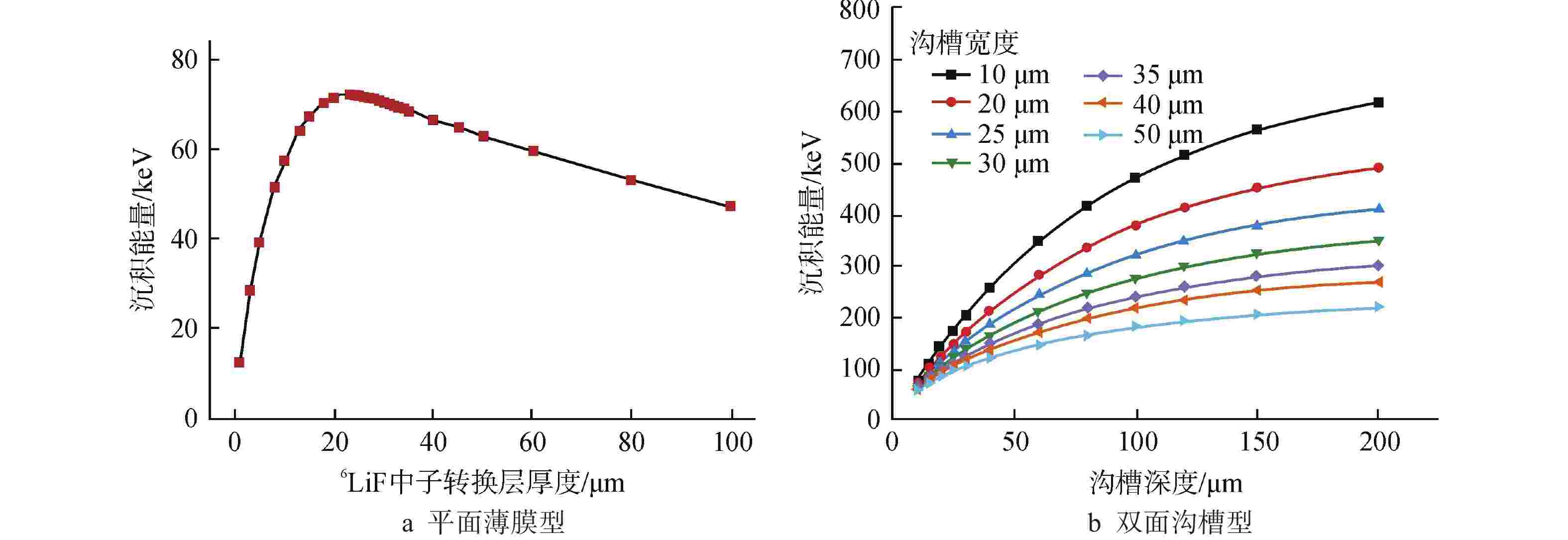

图 2 单位入射中子在α-Al2O3:C衬底中沉积能量变化曲线
Figure 2. Curves of Energy Deposited Per Incident Neutron in α-Al2O3:C

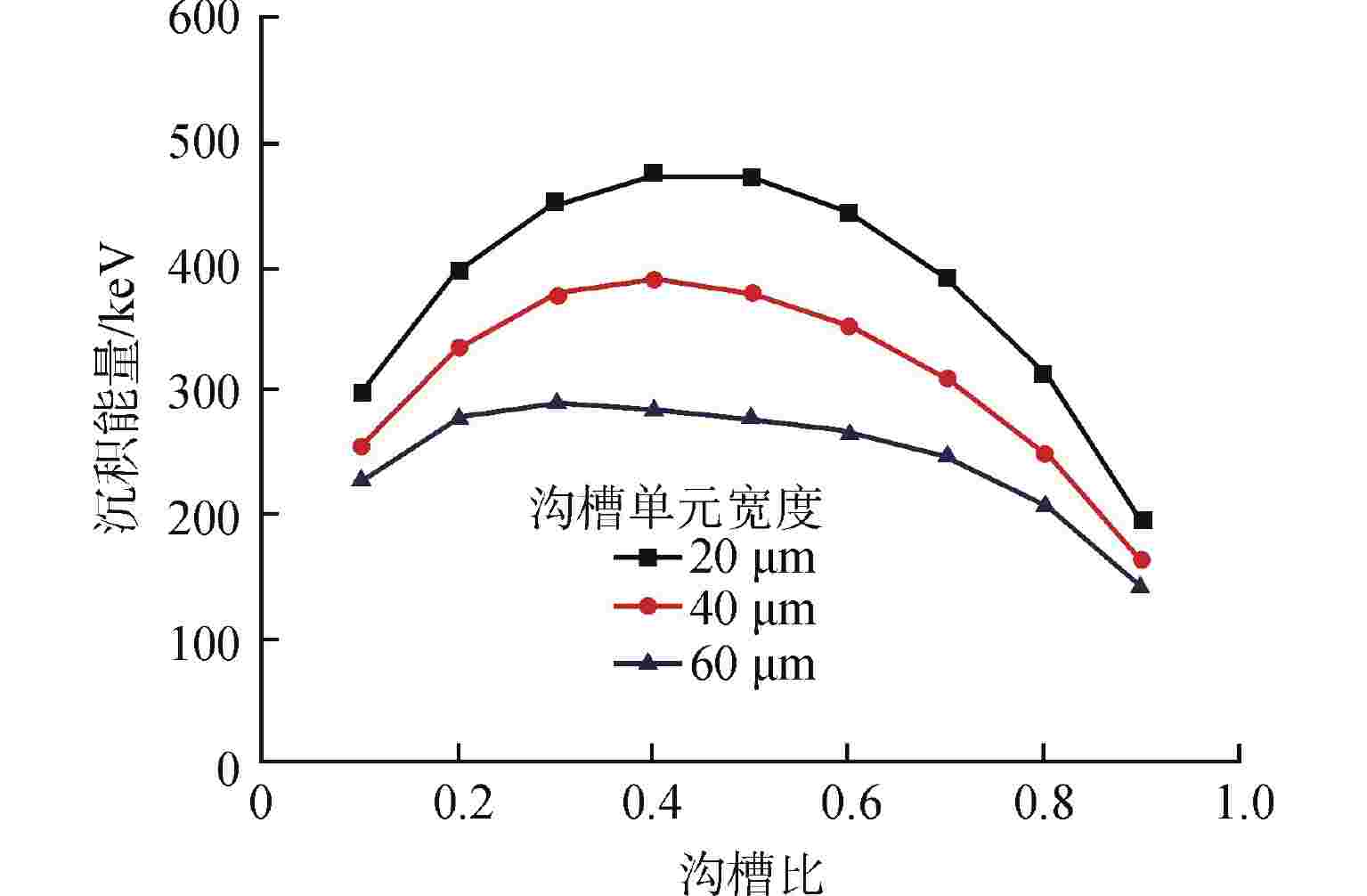

图 3 不同沟槽比和沟槽单元宽度条件下入射中子在α-Al2O3:C衬底中沉积能量变化曲线
Figure 3. Curves of Energy Deposited for Incident Neutron in α-Al2O3:C under Different Trench Ratio and Unit Cell Width

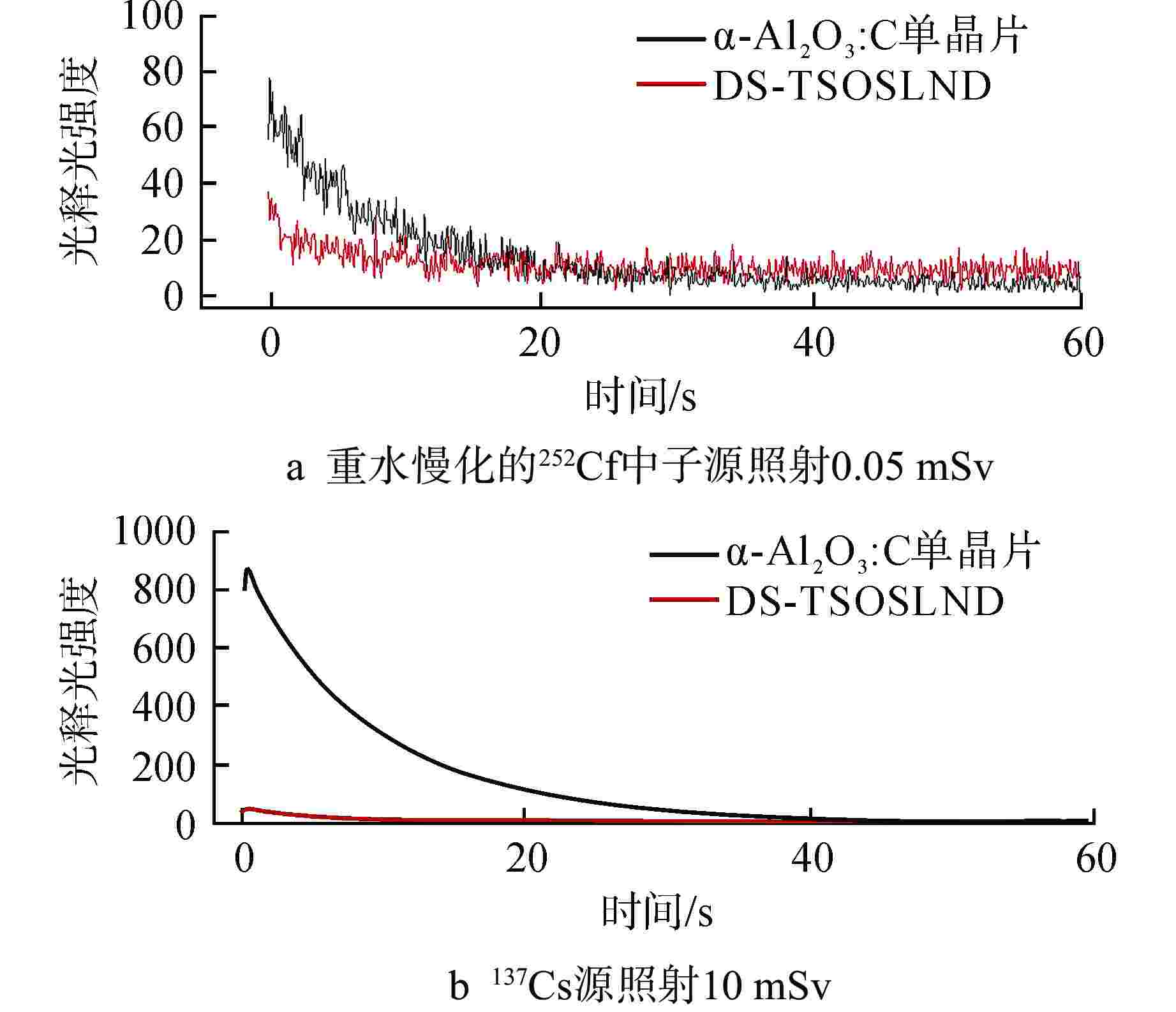

图 4 α-Al2O3:C单晶片和DS-TSOSLND的光释光曲线
Figure 4. OSL Curves of α-Al2O3:C Single Crystal and DS-TSOSLND

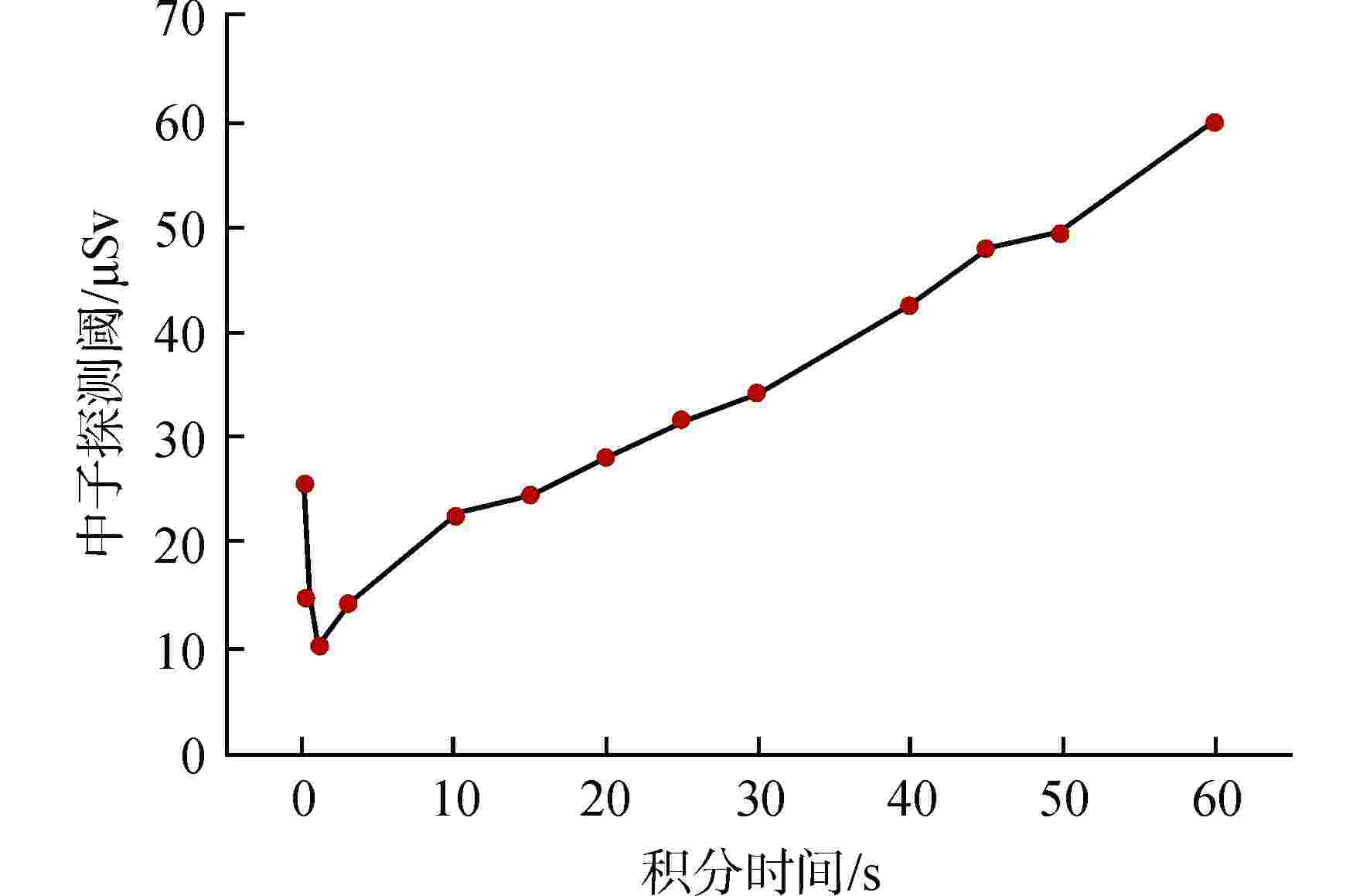

图 5 中子探测阈随积分时间变化曲线
Figure 5. Curve of Neutron Detection Threshold with Integration Time

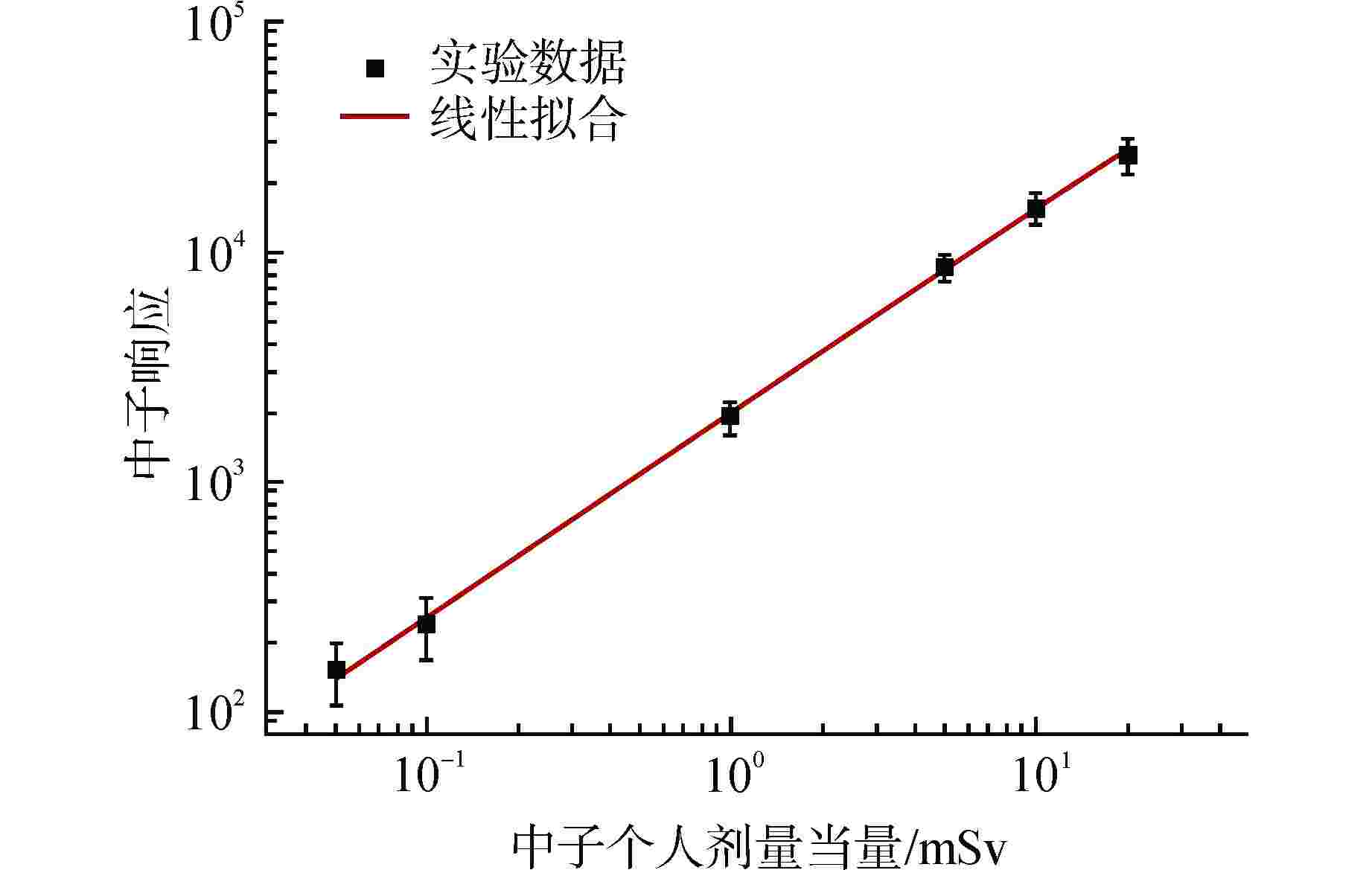

图 6 DS-TSOSLND探测器中子剂量响应曲线
Figure 6. DS-TSOSLND Neutron Response as a Function of the Personal Dose Equivalent
表 1 Geant4模拟计算参数
Table 1. Parameters for Geant4 Simulation
参数 数值 α-Al2O3:C衬底厚度/μm 500 H/μm 10~200 T/μm 10~50 沟槽比（T/Wcell） 0.1~0.9 中子能量/eV 0.025
下载: 导出CSV
-
[1] YIM M S, OCKEN H. Radiation dose management in nuclear power plants[J]. Progress in Nuclear Energy, 2001, 39(1): 31-51. doi: 10.1016/S0149-1970(01)00002-6 [2] 程贺,张玮,王芳卫,等. 中国散裂中子源的多学科应用[J]. 物理,2019, 48(11): 701-707. doi: 10.7693/wl20191101 [3] 薛玉雄,马亚莉,杨生胜,等. 载人航天器舱内辐射剂量监测技术综述[J]. 航天器环境工程,2010, 27(2): 210-214. doi: 10.3969/j.issn.1673-1379.2010.02.018 [4] SINGH A K, RAWAT N S, DHABEKAR B, et al. Characterization of indigenous OSL phosphors LiCaAlF6: Eu, Y and α-Al2O3: C for space dosimetry[J]. Radiation Physics and Chemistry, 2023, 211: 111041. doi: 10.1016/j.radphyschem.2023.111041 [5] TAKADA M, ABE Y, NAKAMURA S, et al. Spectrometer design of low energy neutrons for boron neutron capture therapy[J]. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 2021, 1020: 165848. doi: 10.1016/j.nima.2021.165848 [6] D'ERRICO F, BOS A J J. Passive detectors for neutron personal dosimetry: state of the art[J]. Radiation Protection Dosimetry, 2004, 110(1-4): 195-200. doi: 10.1093/rpd/nch129 [7] GÓMEZ-ROS J M, BEDOGNI R, DOMINGO C. Personal neutron dosimetry: state-of-the-art and new technologies[J]. Radiation Measurements, 2023, 161: 106908. doi: 10.1016/j.radmeas.2023.106908 [8] KLEMIC G A, AZZIZ N, MARINO S A. The neutron response of AL2O3: C, 7LiF: Mg, Cu, P and 7LiF: Mg, Ti TLDs[J]. Radiation Protection Dosimetry, 1996, 65(1-4): 221-226. doi: 10.1093/oxfordjournals.rpd.a031627 [9] YUKIHARA E G. A review on the OSL of BeO in light of recent discoveries: the missing piece of the puzzle?[J]. Radiation Measurements, 2020, 134: 106291. doi: 10.1016/j.radmeas.2020.106291 [10] YUKIHARA E G, BOS A J J, BILSKI P, et al. The quest for new thermoluminescence and optically stimulated luminescence materials: needs, strategies and pitfalls[J]. Radiation Measurements, 2022, 158: 106846. doi: 10.1016/j.radmeas.2022.106846 [11] KNOLL G F. Radiation detection and measurement[M]. Hoboken: John Wiley & Sons, 2010: 519-538. [12] PIETROPAOLO A, ANGELONE M, BEDOGNI R, et al. Neutron detection techniques from μeV to GeV[J]. Physics Reports, 2020, 875: 1-65. doi: 10.1016/j.physrep.2020.06.003 [13] KULIG D, GIESZCZYK W, MARCZEWSKA B, et al. Comparative studies on OSL properties of LiMgPO4: Tb, B powders and crystals[J]. Radiation Measurements, 2017, 106: 94-99. doi: 10.1016/j.radmeas.2017.04.004 [14] PATRA G D, SINGH S G, TIWARI B, et al. Optically stimulated luminescence in Ag doped Li2B4O7 single crystal and its sensitivity to neutron detection and dosimetry in OSL mode[J]. Radiation Measurements, 2016, 88: 14-19. doi: 10.1016/j.radmeas.2016.03.002 [15] YUKIHARA E G, DOULL B A, GUSTAFSON T, et al. Optically stimulated luminescence of MgB4O7: Ce, Li for gamma and neutron dosimetry[J]. Journal of Luminescence, 2017, 183: 525-532. doi: 10.1016/j.jlumin.2016.12.001 [16] YUKIHARA E G, MITTANI J C, VANHAVERE F, et al. Development of new optically stimulated luminescence (OSL) neutron dosimeters[J]. Radiation Measurements, 2008, 43(2-6): 309-314. doi: 10.1016/j.radmeas.2007.10.005 [17] PASSMORE C, KIRR M. Neutron response characterisation of an OSL neutron dosemeter[J]. Radiation Protection Dosimetry, 2011, 144(1-4): 155-160. doi: 10.1093/rpd/ncq300 [18] HONG D G, KIM M J, PARK S H, et al. Neutron detection efficiency of Al2O3: C coated with various thicknesses of Li using OSL[J]. Radiation Measurements, 2011, 46(12): 1701-1703. doi: 10.1016/j.radmeas.2011.07.039 [19] AGOSTINELLI S, ALLISON J, AMAKO K, et al. GEANT4 – A simulation toolkit[J]. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 2003, 506(3): 250-303. doi: 10.1016/S0168-9002(03)01368-8 [20] ALLISON J, AMAKO K, APOSTOLAKIS J, et al. Recent developments in GEANT4[J]. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 2016, 835: 186-225. doi: 10.1016/j.nima.2016.06.125 [21] SUN T, TANG K, CUI H, et al. Optically stimulated luminescence of α-Al2O3: C by the vertical gradient freezing (VGF) method[J]. Journal of Luminescence, 2019, 205: 568-571. doi: 10.1016/j.jlumin.2018.10.014 [22] RAWAT N S, DHABEKAR B, KULKARNI M S, et al. Optimization of CW-OSL parameters for improved dose detection threshold in Al2O3: C [J]. Radiation Measurements, 2014, 71: 212-216. doi: 10.1016/j.radmeas.2014.02.013 [23] 中华人民共和国国家卫生健康委员会. 职业性外照射个人监测规范: GBZ 128—2019[S]. 北京: 中国标准出版社,2019: 8. -
